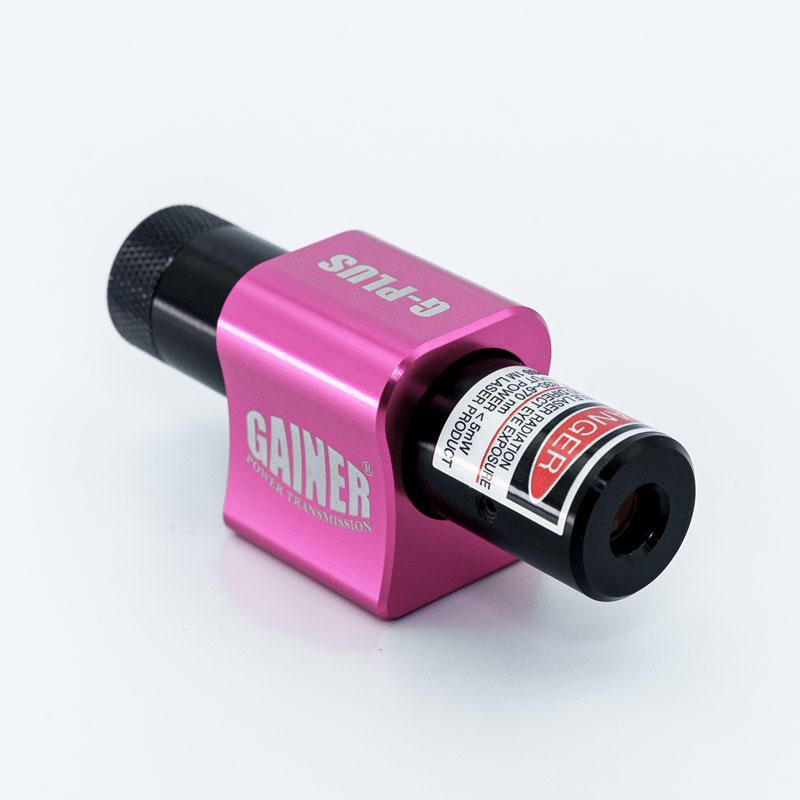

G-PLUS Pulley Laser Alignment Pack
Description

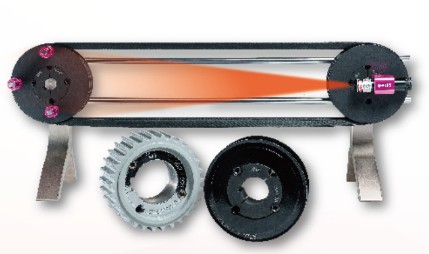

G-PLUS Portable Belt Pulley Laser Alignment Tool is a high-precision laser alignment instrument specifically engineered for industrial equipment maintenance. Utilizing high-brightness laser technology and a lightweight, portable design, it enables rapid detection and correction of pulley parallel misalignment, angular error, and axial offset. With its intuitive operation interface, even a single operator can complete precise alignments within minutes, significantly reducing equipment wear and downtime risks.
Features
- Precise alignment, stable transmission, energy saving and carbon reduction.
- Magnetic design for portability, intuitive use, and precision performance.
- Compatible with all types of pulleys no limitations on grooves or tooth profiles.

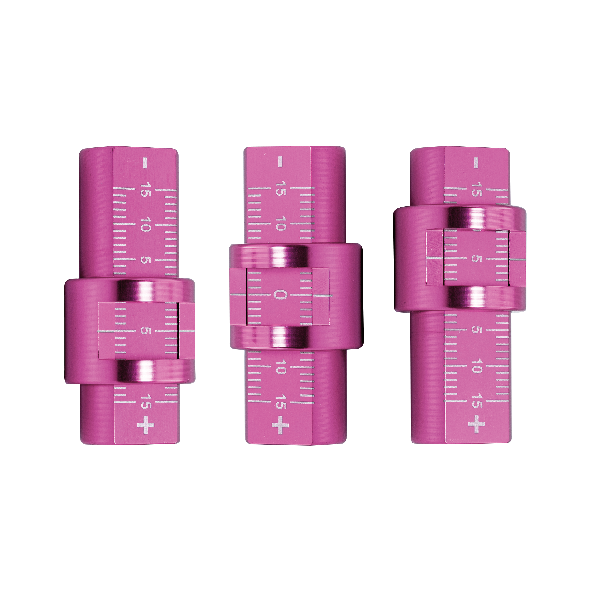

- Adjustable calibrators addresses eccentric misalignment issues for pulleys of varying widths.

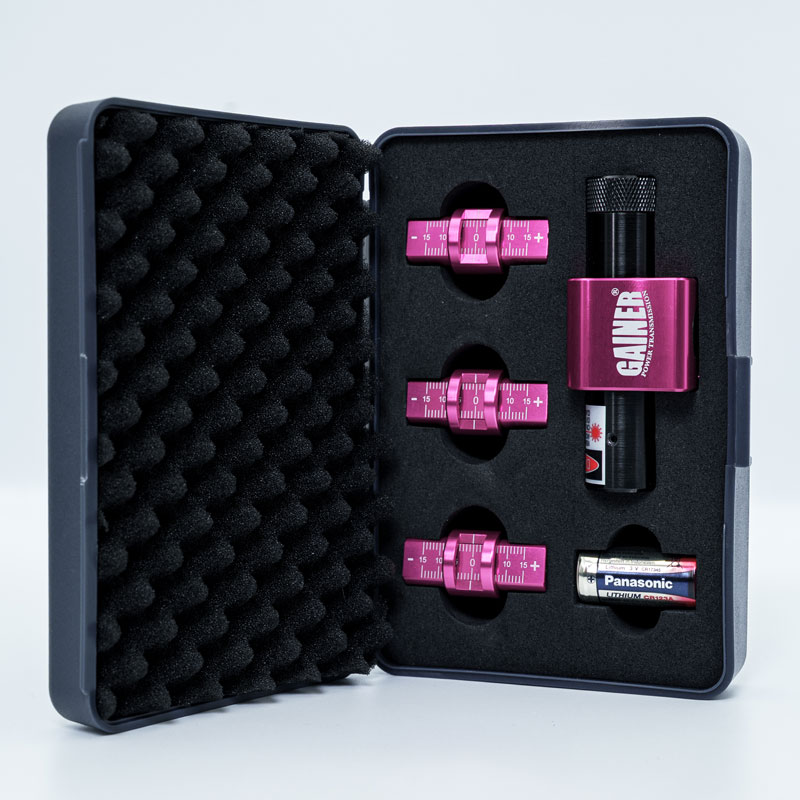

Accessories
Specification
| BRUSH SIZE | G-PLUS |
|---|---|
| Laser class | 1M (EN60825-1) |
| Output power | < 5mw |
| Wavelength | 630-670nm RED |
| Line thickness | 1mm |
| Measuring accuracy | θ<±0.1° |
| Battery type | CR123A 3V |
| Continuous use | 42 hours |
| Relative Humidity | < 90%RH non-condensing |
| Temperature range | - 20 / +50 °C |
| Protection | IP40 |
| Material | Aluminum alloy |
| Dimensions | L86xW28xH35mm |
| Weight | 89.5g |
| Adjustable calibrator | Ø14X42mmL *3pcs |

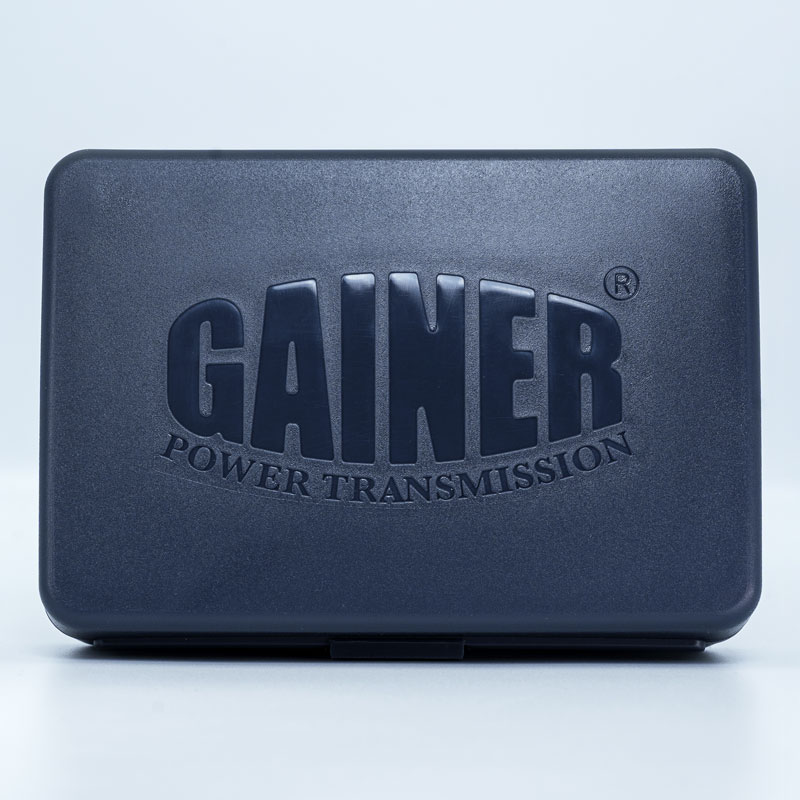

| Box dimensions | L156xW110xH42mm |
| Total weight | 300g |
| Patent number | TWPAT.NO.D241059 TWPAT.NO.M672486 TWPAT.NO.M672482 |
| Product specifications may be changed without prior notice. | |

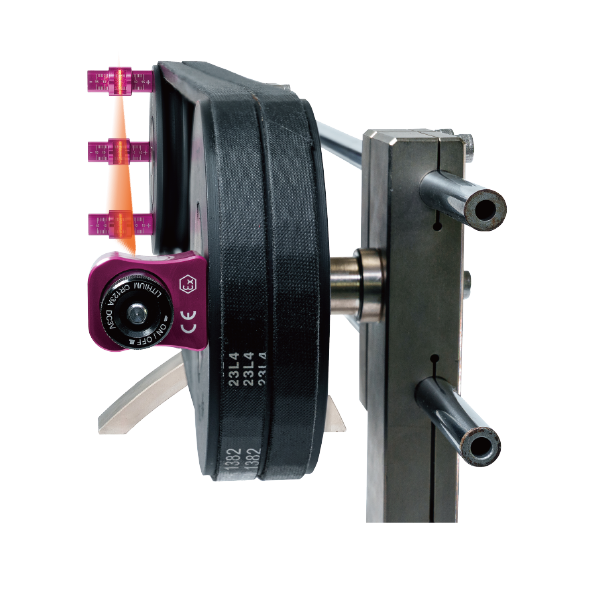

Installation
