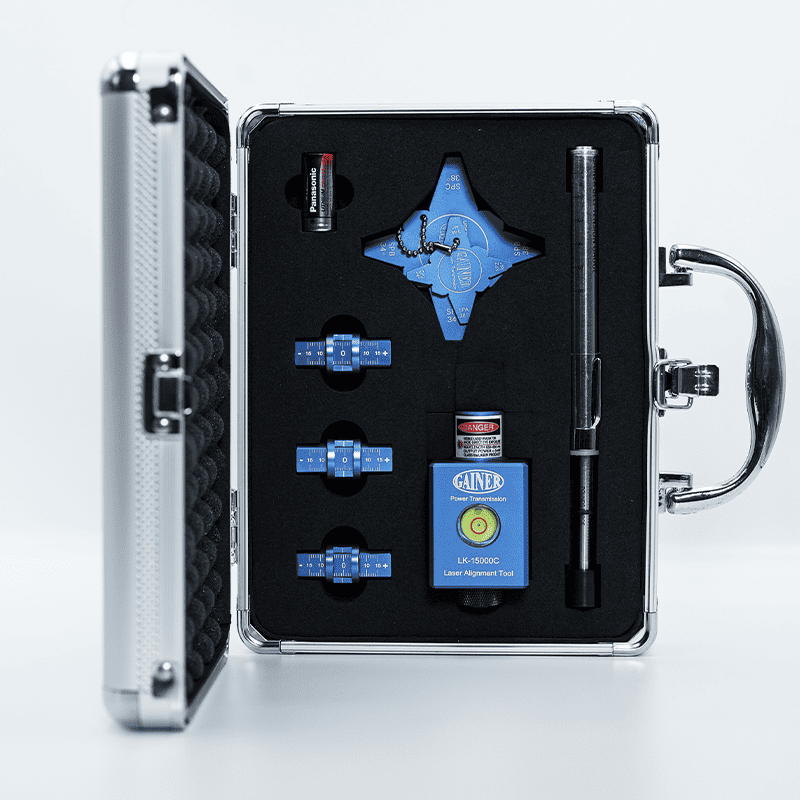

LK-15000C Belt Pulley Laser Alignment Tool

Description

By integrating precise alignment with stable transmission, this solution effectively maximizes operational efficiency while advancing energy saving and carbon reduction goals. Its magnetic design ensures portable, intuitive use without compromising on precision performance, offering a seamless user experience.

Furthermore, the system is fully compatible with all types of pulleys, removing any limitations regarding grooves or tooth profiles. To ensure total accuracy, the adjustable calibrators specifically address eccentric misalignment issues, making it an ideal fit for pulleys of varying widths.

Features

• Precise alignment, stable power transmission, energy saving and carbon reduction!
• Magnetic design for portability, intuitive use, and precision performance.
• Compatible with all types of pulleys - no limitations on grooves or tooth profiles.

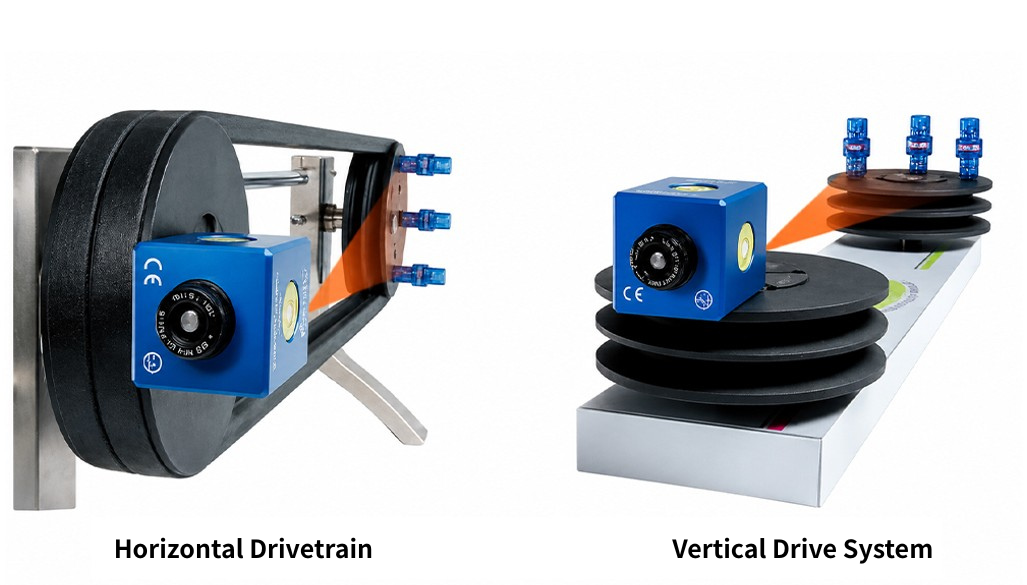

• The circular 360° level solves angular misalignment of vertical transmission.

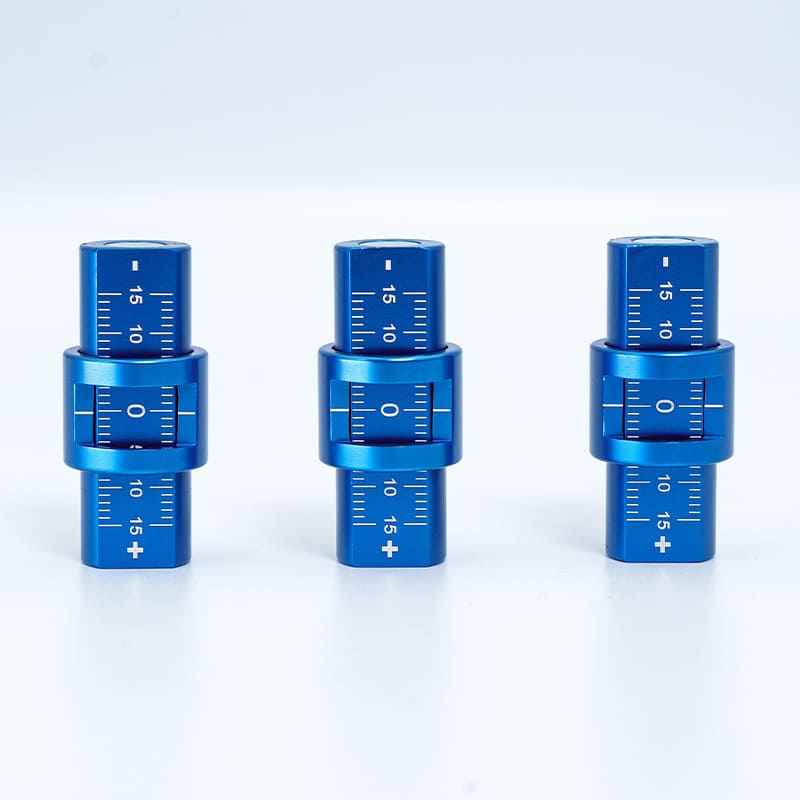

• Adiustable calibrators addresses eccentric misalignment issues for pulleys of varying widths.
• Misalignment pulley installation can cause belt deviation, rapid wear, and power loss.
• Accurate pulley alignment reduces mechanical vibration, noise, while minimizing the risk of damage to other components

Specification

Installation

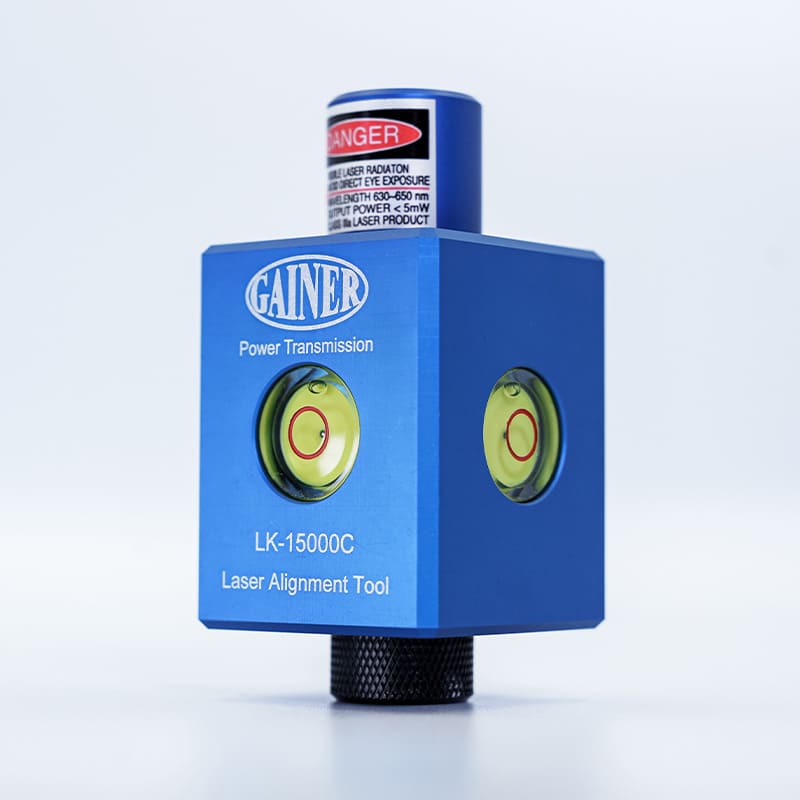

1. Place the GAINER LK-15000C Belt Pulley Alignment Tool on the pulley (A) by the motor side.

2. Measure the width deviation of the two pulleys and adjust the reference point of the alignment calibrators accordingly.

3. Position the three calibrators at the 3, 6, and 12 o'clock positions on Pulley (B).

4. Turn on the power and project the LK-15000C laser beam onto the cailbration targets.

5. Inspect the circular 360° level and the laser position on the targets, then adjust the pulleys until proper alignment is achieved.
