G-PLUS Sprocket & Pulley Laser Alignment Tool

Description

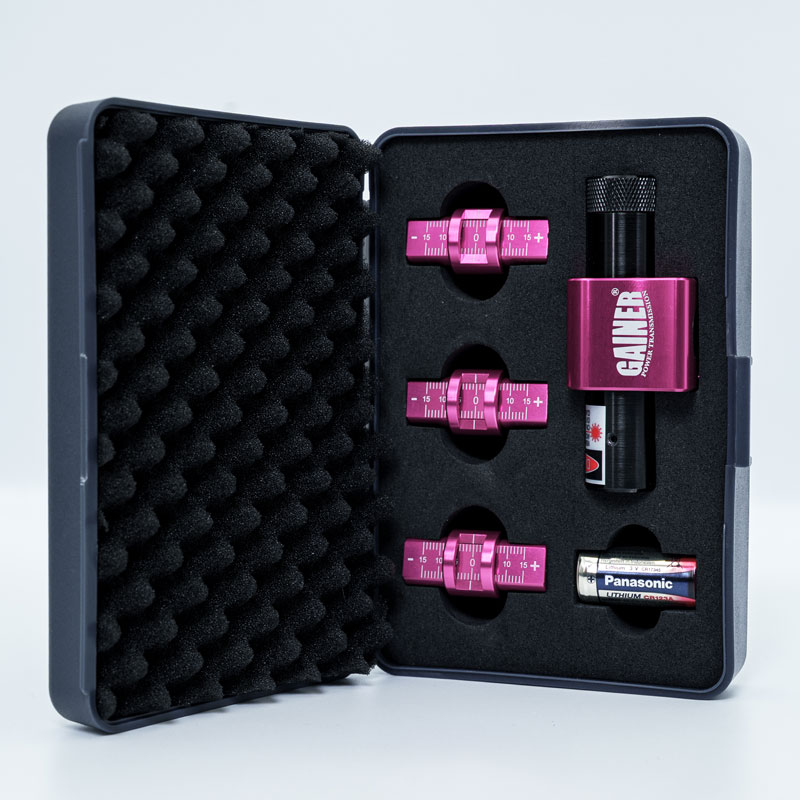

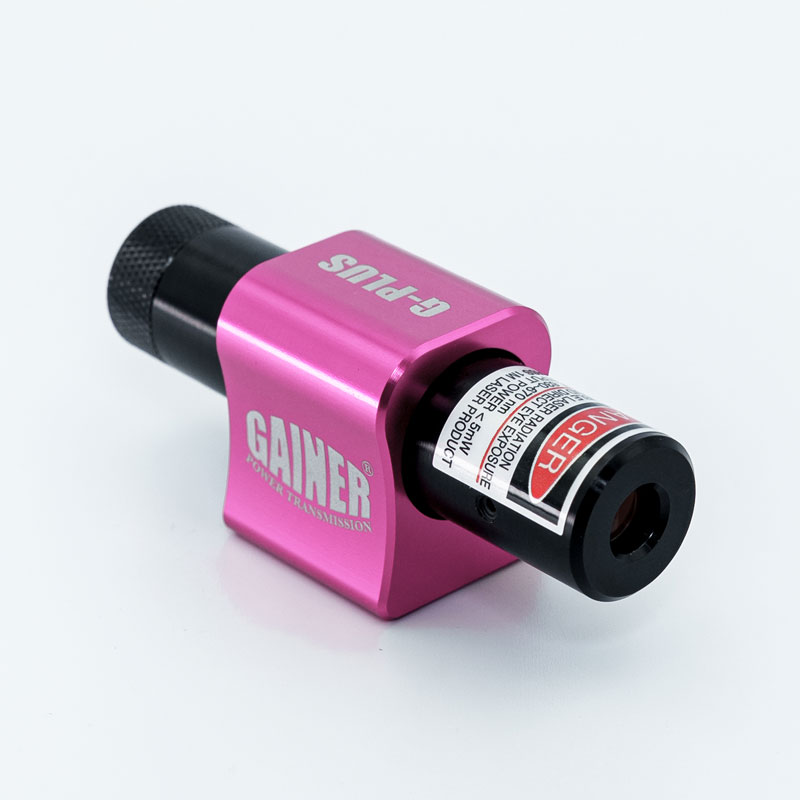

The G-PLUS Sprocket and Pulley Laser Alignment Tool is a high-precision laser alignment instrument engineered specifically for chain drive maintenance. Featuring high-brightness laser technology and a lightweight, portable design, it swiftly detects and corrects parallel offset, angular misalignment, and axial runout on sprockets. With an intuitive operation interface, a single technician can complete precise alignment in minutes, significantly reducing equipment wear and unplanned downtime.

Features

• Precision Alignment, Stable Transmission, Energy Efficient: Enhances drive stability and lowers power consumption through precise alignment.
• Magnetic Mounting, Ultra-Portable & Intuitive: Fast, user-friendly setup with secure magnetic mounting for single operator use.
• Universal Compatibility: Works with all sprockets and pulleys with no profile, groove, or tooth-type restrictions.

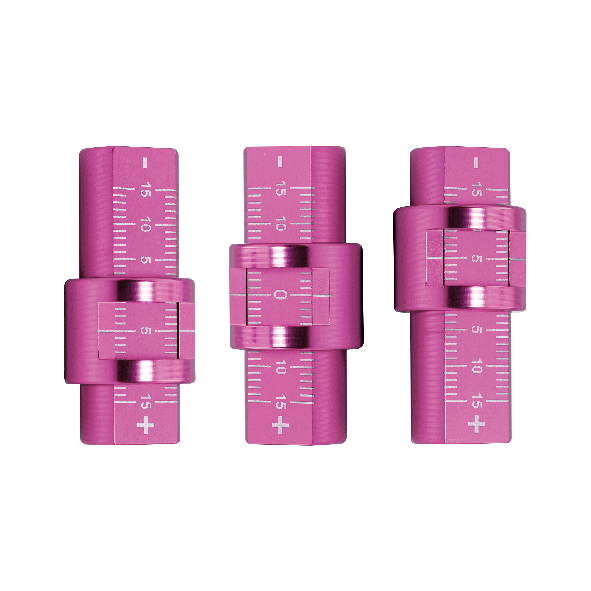

• Adjustable Calibrator Adapters: Easily compensates for pulleys and sprockets of differing face widths to eliminate eccentric misalignment.

For vertical-shaft drives, choose the LK-15000C or GL-2000 models, both equipped with a built-in 360° circular level.

Installation

1. Place the GAINER G-PLUS Sprocket and Pulley Laser Alignment Tool on the sprocket (A) on the motor side.

2. Measure the width deviation of the two sprockets and adjust the reference point of the alignment calibrators accordingly.

3. Place the three target calibrators at the 3, 6, and 12 o'clock positions on sprocket (B).

4. Power on the device to project the G-PLUS laser beam onto the calibration targets.

5. Observe the laser line position on the target markers, then adjust the sprocket until precise alignment is achieved.
